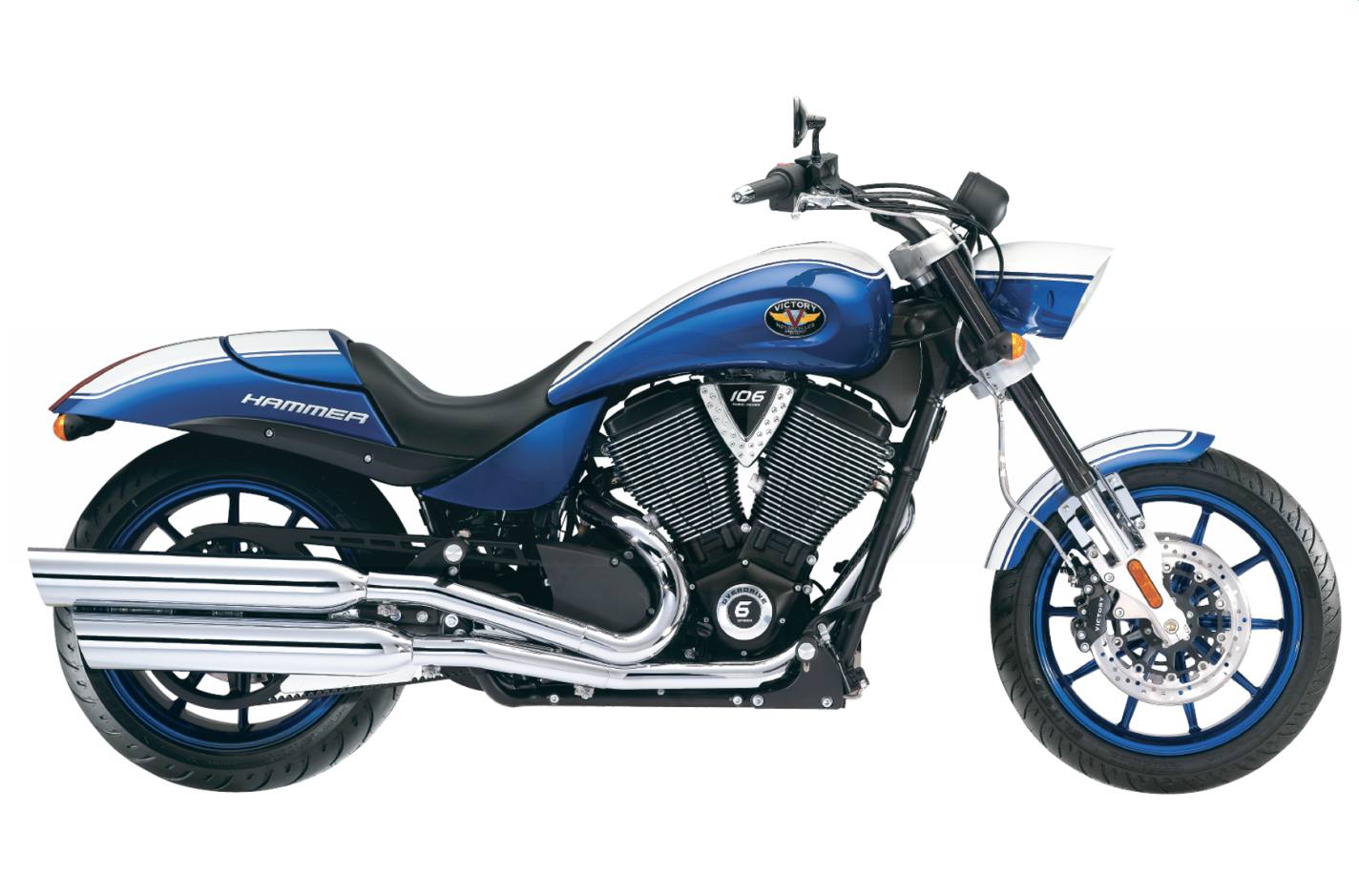

2010 Victory Motorcycles Hammer®
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Modern American muscle inspires the 2010 Victory Hammer® Motorcycle. Are you feeling the need? Then try this: a wide 250mm rear tire, 97 horsepower, 113 foot-pounds of torque, inverted front forks, dual-disk front brakes & a speedo & tach — standard. These performance features make such a strong statement that fully expresses the Hammer®.


For cruising on Main Street or cruising across state lines, the Hammer® provides a fantastic experience. Find out more about its features, specifications, pricing, comparisons, reviews, videos, images, brochures, downloads, and locate your nearest dealer that has the Victory Hammer® Motorcycle.

  • 250MM Rear Tire - Roll smooth & roll in style on this 250mm rear tire. It was developed jointly by Victory engineers and Dunlop tire technicians to provide excellent performance and a great ride.
  • Super-Bright Multi-LED Taillight - As leader of the pack, a Hammer needs a taillight that's easy to follow. This light is exceptionally bright & super-stylish with its smart design & flush mounting.
  • Chopped Rear Fender - The stylish Hammer rear fender holds a flush-mounted taillight and the fender is chopped in a sport-inspired manner to show off the impressive 250mm rear tire.
  • Removable Passenger-Seat Cowl - Where's the passenger seat? Right under the stylish, removable cowl that complements the bike's styling and keeps the passenger pad under wraps until it's time for 2-up riding.
  • 106-Cubic-Inch Freedom V-Twin - This 106-ci/1731cc Freedom V-Twin has Stage 2 cams & delivers a road-ruling 97 horsepower 7 113 ft-lb. torque. Electronic Fuel Injection keeps it smooth & efficient so you enjoy pure power.
  • Speedometer and Tachometer - A chrome bracket holds the speedo and tach side-by-side for easy to read, heads-up viewing of the bike's operating data.
  • Custom Headlight - For a total integration of the bike's custom styling, the headlight bucket features elements of the bike's paint scheme so the color treatment extends the full length of the bike.
  • Inverted Front Fork - The inverted cartridge telescopic fork has 5.2" (130mm) of bump-swallowing travel and provides a Hammer rider with smooth, easy steering, in town and on the open road.
  • 18-Inch Front Wheel - This stylish 10-inch wheel has a tire that puts some real meat on the road. It holds the road well, inspiring confidence and providing easy, natural handling.
  • Premium Dual-Disk Brakes - Enjoy consistently outstanding braking with these dual 300mm floating rotors equipped with 4-piston calipers. They provide sure stopping that inspires confident riding.
  • 6-Speed Overdrive Transmission - There's smooth shifting through the gears, and in 6th - which is a true overdrive - the RPMs drop for smooth, efficient highway cruising. Plus, there's still power for passing without downshifting.
Engine
  • Engine Type: 4-stroke 50° V-Twin
  • Cooling Type: Air / Oil
  • Displacement: 106 ci / 1,731 cc
  • Bore x Stroke: 101 x 108 mm
  • Compression Ratio: 9.4:1
  • Valve Train: Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters
  • Fuel System: Electronic Fuel Injection with dual 45mm throttle body
  • Fuel Capacity: 4.5 gal / 17.0 ltr
  • Exhaust: Staggered slash-cut dual exhaust with crossover
  • Oil Capacity: 5.0 qts / 4.75 ltr
  • Charging System: 38 amps max output
  • Battery: 12 volts / 18 amp hours
  • Primary Drive: Gear drive with torque compensator
  • Clutch: Wet, multi-plate
  • Transmission: 6-speed overdrive constant mesh
  • Final Drive: Carbon Fiber Reinforced Belt
Chassis Dimensions
  • Length: 93.1 in / 2,366 mm
  • Wheelbase: 65.7 in / 1,669 mm
  • Seat Height: 26.5 in / 673 mm
  • Ground Clearance: 5.8 in / 148 mm
  • Rake/Trail: 32.7° / 5.5 in / 140 mm
  • Dry Weight: 672 lbs / 305 kg
  • GVWR: 1,173 lbs / 533 kg
Suspension
  • Front Suspension: Inverted cartridge telescopic fork, 43 mm diameter, 5.1 in 130 mm travel
  • Rear Suspension: Single, mono-tube gas, cast aluminum with rising rate linkage, 3.9 in/100 mm travel, preload adjustable spring
Brakes
  • Front Brake: Dual 300mm floating rotor with 4-piston caliper
  • Rear Brake: 300mm floating rotor with 2-piston caliper
Wheels & Tires
  • Front Wheel: 18 x 3.5 in
  • Rear Wheel: 18 x 8.5 in
  • Front Tire: 130/70R18 Dunlop Elite 3
  • Rear Tire: 250/40R18 Dunlop Elite 3
Color Options
  • Multiple Colors: Blue Ice w/ Extreme Graphics

Specifications

Engine
Engine Type 4-stroke 50° V-Twin
Displacement 106 ci / 1,731 cc
Bore and Stroke 101 x 108 mm
Cooling Air / Oil
Compression Ratio 9.4:1
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Chassis
Front Brakes Dual 300mm floating rotor with 4-piston caliper
Front Tire 130/70R18 Dunlop Elite 3
Rear Suspension Single, mono-tube gas, cast aluminum with rising rate linkage, 3.9 in/100 mm travel, preload adjustable spring
Rear Brakes 300mm floating rotor with 2-piston caliper
Rear Tire 250/40R18 Dunlop Elite 3
Dimensions
Dry Weight 672 lbs / 305 kg
Fuel Capacity 4.5 gal / 17.0 ltr
Wheelbase 65.7 in / 1,669 mm
Seat Height 26.5 in / 673 mm
Trail 5.5 in / 140 mm
Rake 32.7°
Transmission
Transmission 6-speed overdrive constant mesh
Final Drive Carbon Fiber Reinforced Belt
General
Speedometer Yes
Tachometer Yes
Colors Blue Ice w/ Extreme Graphics

Compare Models

 Print








Year 2010
Manufacturer Victory Motorcycles
Model Hammer®
Style Cruiser
MSRP* $18,999.00
Chassis
Front Suspension
Front Brakes Dual 300mm floating rotor with 4-piston caliper
Front Tire 130/70R18 Dunlop Elite 3
Rear Suspension Single, mono-tube gas, cast aluminum with rising rate linkage, 3.9 in/100 mm travel, preload adjustable spring
Rear Brakes 300mm floating rotor with 2-piston caliper
Rear Tire 250/40R18 Dunlop Elite 3
Dimensions
Dry Weight 672 lbs / 305 kg
Fuel Capacity 4.5 gal / 17.0 ltr
Wheelbase 65.7 in / 1,669 mm
MPG
Seat Height 26.5 in / 673 mm
Trail 5.5 in / 140 mm
Rake 32.7°
Engine
Engine Type 4-stroke 50° V-Twin
Displacement 106 ci / 1,731 cc
Bore and Stroke 101 x 108 mm
Cooling Air / Oil
Compression Ratio 9.4:1
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Ignition
General
Speedometer Yes
Tachometer Yes
Odometer
Colors Blue Ice w/ Extreme Graphics
Warranty
Transmission
Transmission 6-speed overdrive constant mesh
Final Drive Carbon Fiber Reinforced Belt
